ecoVENT NANO

PLUM ELECTRONICS
controller for ventilation units and heat recovery

ecoVENT NANO
ventilation controller

The ecoVENT NANO controller is designed for built-in installation. It allows to control small, medium and large ventilation units. Built-in support for a stepper motor and cooperation with sensors (humidity, temperature, air quality) allows to design the most cost-effective solution.

about
ecoVENT NANO

  • built-in support for stepper motor, cost-effective control of the bypass and rotary heat exchanger
  • DAY/NIGHT zone control
  • configuration capability for inputs and outputs
  • collaboration with temperature, humidity, and air quality sensors
  • 5-stage defrost algorithm for the heat exchanger
  • DCV Demand Controlled Ventilation
  • CAV/VAV airflow control function
  • Modbus communication

Why you should choose
ecoVENT NANO controller?

reduce the cost of your recuperator

activate zone control, save energy by enjoying fresh air according to real demand

enable installers to easily connect devices with the ecoNEXT Installation Assistant and the ecoNEXT app

connect recuperation and heat pump in a single system via ecoNET Cloud

simple ventilation
control panel SCP V

The SCP V control panel enables convenient configuration and control of the ventilation system through the ecoNET Cloud web platform and via the ecoNEXT local configuration application.

The SCP V panel allows for setting the operating mode of the unit (OFF, Auto, Schedule, Manual Mode) and manual control of the fans. It enables monitoring of the current operational status of the unit: fan operation, operating mode, and indicates the need for filter replacement and/or service intervention due to the current alarm state.

remote configuration
and operation of ventilation

ecoNEXT is a mobile application for controlling and configuring the ecoVENT NANO controller via wireless bluetooth connection. The ecoNEXT application extends the capabilities of the SCP V panel, allowing for quick software updates and uploading of pre-configured heat recovery control profiles. It also operates in offline mode, enabling the uploading of pre-configured heat recovery control profiles during installation or production.

The Installation Assistant enables step-by-step configuration of controller parameters during its initial setup. Parameters for configuration are displayed as questions in the ecoNEXT mobile application via bluetooth connection.

Demand Controlled Ventilation

Demand Controlled Ventilation (DCV) is a ventilation strategy used in buildings to optimize indoor air quality, reduce energy costs, and increase user comfort. Key elements of the DCV system are sensors. Constant monitoring of temperature, humidity, and pollutant levels enables adjustment of the ventilation system’s operation to specific conditions in a given space. This dynamic control allows for energy savings by reducing ventilation when it is not needed while ensuring an adequate amount of fresh air for occupants when necessary, resulting in improved indoor air quality and higher energy efficiency.

sensors
for ventilation systems

  • ecoPRESS pressure differential sensor
  • SRHT temperature and humidity sensor
  • SCO2 carbon dioxide, temperature, and humidity sensor

system for managing
and servicing installations 24/7

remotely analyze historical data

reduce service call costs by resolving issues remotely

eliminate errors in device installation using the Installation Assistant and installation log

empower users with control over energy bills with the HEMS Dynamic service

ecoNET Cloud system

Remote configuration, diagnostics, and monitoring of systems and installations from any location are facilitated by the ecoNET Cloud system. It provides real-time visibility into the operating parameters of devices, enabling an immediate response to service alarms. The system grants access to comprehensive historical data on installation operation, facilitates simple software updates and device parameter adjustments.

ecoNET Cloud enhances control and security for both end-users and installers and service technicians.

technical data

power supply:
230 VAC, 50 Hz
idle current:
0,04 A
dimensions:
150 x 100 mm, height 34 mm (including 9 mm spacers)
mounting:
built-in installation

customization

we take care of your brand and its uniqueness in the market

We understand that devices must be visually consistent, so we can match the color scheme and appearance of the devices to your brand’s visual identity.

Appearance matters.

accessories

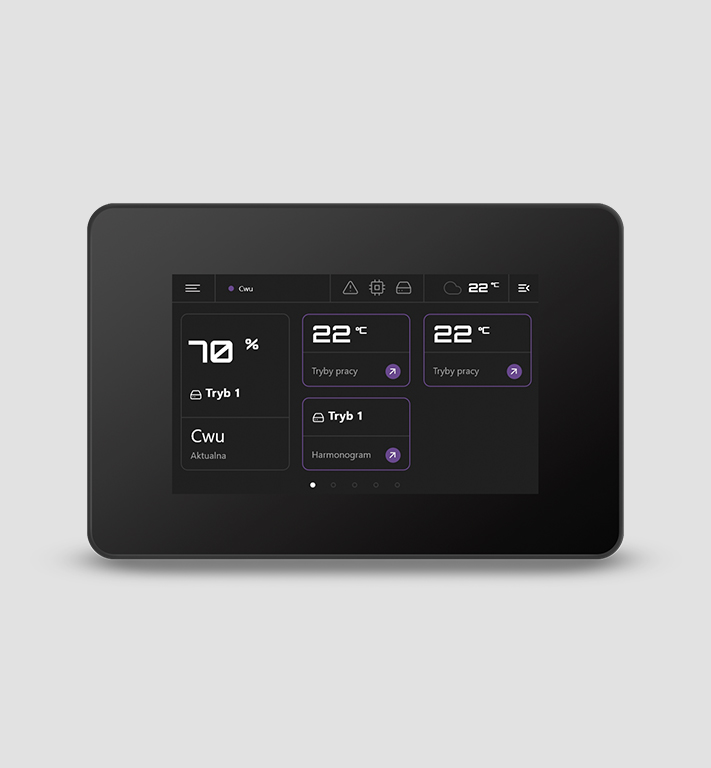

Touchscreen 5"

Touchscreen room control panel with a 5″ screen

ecoNEXT

Application for local configuration and management of PLUM controllers

HEMS Dynamic

Service for optimizing and managing energy in buildings using dynamic tariffs

ecoPRESS

Pressure difference transducer

SRHT

Sensor for temperature and humidity measurement

SCO2

Sensor for CO2 concentration, temperature, and humidity measurement

Touchscreen 4,3"

Touchscreen room control panel with a 4.3″ screen
