xFLOOR 2 - Plum HVAC

xFLOOR 2
underfloor heating
controller

The xFLOOR 2 controller is designed for managing underfloor heating systems. The underfloor heating controller supports thermoelectric actuators for eight separate heating zones. Wireless thermostats, wired thermostats, and temperature sensors transmit information about the current temperature in individual rooms to maintain a consistent level of thermal comfort.

The ability to control temperature independently for each heating zone allows for maintaining thermal comfort according to users’ preferences and contributes to reducing heating bills.

about
xFLOOR 2

control of circulation pump, heat source, and valves

connection of additional controllers (up to 4)

built-in
bluetooth

direct configuration from the controller

heating
and cooling

support for up to 8 heating zones per controller (max. 32 zones)

built-in
Installation Assistant

ability to control 5 actuators per 1 output

support for the system in online or offline mode

wired and wireless thermostats in one system

expansion of the system according to users' needs and building situations

quick installation and simple maintenance

thermostats with cooling algorithms

solution for both new and renovated buildings

easy connection of actuators

system
configuration

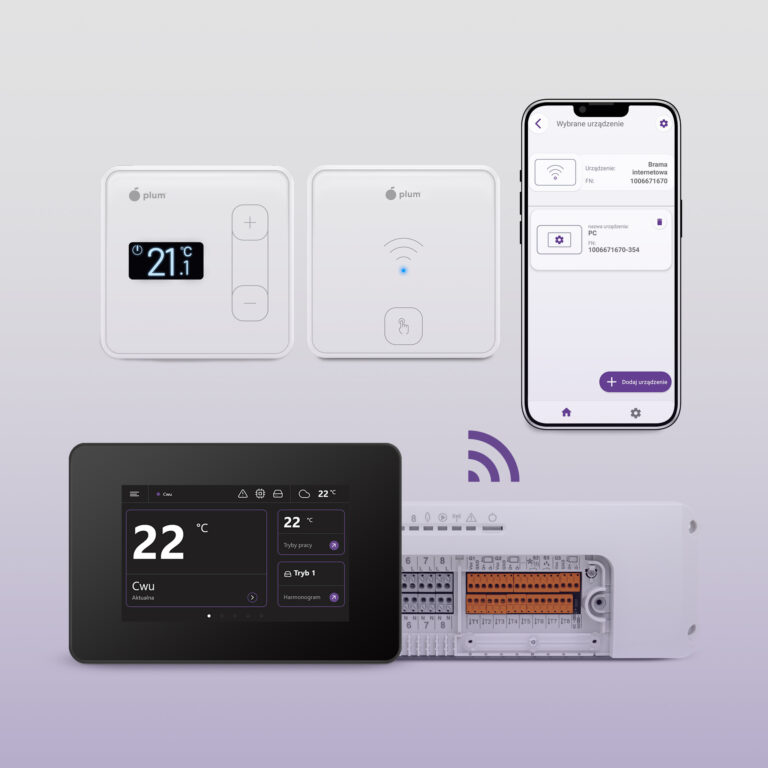

To configure the most basic xFLOOR 2 underfloor heating control system, you only need four components: the xFLOOR 2 module, xTHERM 30p room thermostat, TTO 230V actuator, and the free mobile app ecoNET Cloud. The system allows for flexible expansion at any time.

xFLOOR 2 BASIC

A basic solution for controlling underfloor heating systems.

xFLOOR 2 module
xTHERM 30p thermostat
TTO 230V actuator
ecoNET Cloud app
simple and fast solution
competitively priced solution
easy system expansion in the future
local bluetooth configuration

xFLOOR 2 OPTIMUM

A comfortable solution with internet connectivity options.

xFLOOR 2 module
xTHERM thermostats
TTO 230V actuators
ecoNET Cloud app
xCLOUD internet module
wired and/or wireless thermostats
local configuration via bluetooth
remote control and configuration
simple and intuitive installation
WiFi communication

xFLOOR 2 PREMIUM

An advanced control solution.

xFLOOR module
xTHERM thermostats
TTO 230V actuators
ecoNET Cloud app
xCLOUD internet module
xTHERM TOUCH touch panel
touchscreen with thermostat functionality
wired and/or wireless thermostats
local configuration via bluetooth
remote control and configuration
simple and intuitive installation
WiFi communication

initial setup
with Installation Assistant

The Installation Assistant allows you to configure the underfloor heating controller step by step during its initial setup and after connecting it to the underfloor heating installation.

The configuration parameters are displayed as questions in the ecoNET Cloud mobile app through a bluetooth connection or on the xTHERM TOUCH device’s screen.

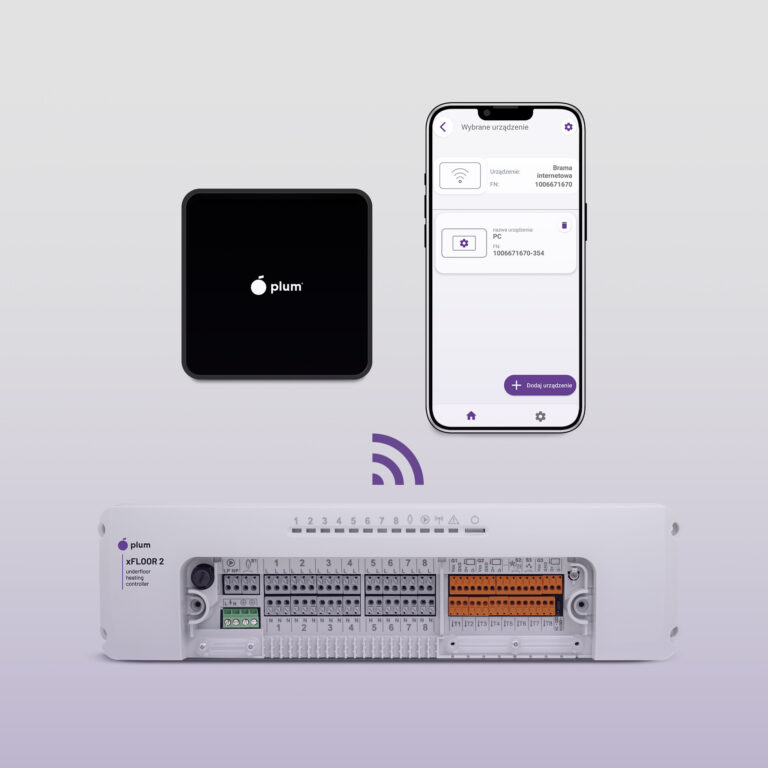

remote access and servicing
of underfloor heating installations

Thanks to the xCLOUD module and the ecoNET Cloud online platform, you will gain remote and transparent access to historical data about the operation of devices and optimize their parameters 24/7.

Remote configuration, servicing, diagnostics, and monitoring of systems and installations from anywhere. The ecoNET Cloud system enhances thermal comfort, control, and security while reducing servicing costs for both end-users and installers/service technicians.

ecoNET Cloud is a mobile application for controlling and configuring the xFLOOR 2 controller via wireless BT connection.

The underfloor heating configuration application operates in offline mode. The ecoNET Cloud application extends the functionality of thermostats from the xTHERM line.

ecoNET Cloud

remotely analyze historical data on device operation and optimize their parameters

reduce the costs of service trips by resolving issues remotely within the online system

shorten the installation time of devices and eliminate errors by utilizing the built-in Installation Assistant and installation log

give users of your devices real control over energy bills with HEMS Dynamic

evoSYSTEM

Zintegruj listwę ogrzewania podłogowego xFLOOR 2 z pozostałymi urządzeniami HVAC w domu.

xFLOOR 2 as a part of evoSYSTEM

Integrate all HVAC devices into a single system and manage your home’s energy in a smart, dynamic, and flexible way.

manage energy intelligently with HEMS Dynamic
reduce operating costs with HEMS Hybrid hybrid control
remotely manage installation and service via ecoNET Cloud

explore evoSYSTEM

technical data

power supply :

230 V ~, 50 Hz

degree of protection:

IP 20

ambient temperature :

0...50°C

storage temperature:

-25... +60 °C

relative humidity:

IP 20

downloads

plum HVAC portfolio

xFLOOR datasheet
