evoFLOOR X

*The product is in the final stage of development. Launch coming soon.

wired controller
for multi-zone underfloor
heating

The wired controller (230 VAC crossover) enables the connection of the xTHERM 60U room thermostats and the TTO 230 V thermostatic actuators for up to 8 heating zones. It is used to control underfloor heating in medium and large single-family homes.

functions

control of the TTO 230 V thermostatic actuators
(NC/NO type) and the xTHERM 60U room thermostats
for up to 8 heating zones

contact control of a heat source, e.g.,
gas boiler, heat pump or manifold circulation pump

LED indication

heating mode

easy installation with detachable screw connectors
and protection against wire pull-out

housing suitable for DIN 35 rail or wall-mounting

built-in protection against output overload

comfort and energy efficiency
in every zone

Optimal cooperation with heat pumps and boilers – full control of the operating cycle

Why choose the evoFLOOR
underfloor heating controller?

universal controller dedicated to developer projects
low device cost thanks to optimized design
easy system expansion to match user needs and unique building features
suitable for both new and renovated buildings
ergonomic housing for quick and easy installation
minimalist design

in combination with xTHERM 60U:

remote access and service for underfloor heating installations

remotely manage the installation
and service using
ecoNET Cloud

Provide users with remote access to the system and control over the installation from anywhere and at any time.
Remotely diagnose and resolve service issues without the need for a technician to visit the site.
Record the operating history of devices, easily identify potential problems, and optimize energy consumption.

one product series
two levels of advancement

The simplest strip on the market

compatible with xTHERM 60U thermostats
works without an app, without pairing, and with no risk of misconfiguration
perfect for serial installations and quick setups

evoFLOOR

Smart version with Bluetooth communication and wireless module

configuration via evoNET Cloud app
installer assistant with zone testing and automatic sensor detection
integration with evoSYSTEM energy management system

technical
data

protection degree:

IP 20

protection degree:

0...50°C

storage temperature:

-25...+65°C

mounting:

DIN 35 rail or wall - mounted (flush-mounted)

external dimensions:

248x100x50 mm

potential relay output:

manifold pump: P1(L, N), max. load 3 (3) A

potential - free relay output :

heat source: S1 (NO/COM), max. load 1 A

accessories

evoNET Cloud

An app for both computers and mobile devices for servicing HVAC installations

xTHERM 60U

Room temperature controller with an OLED display, universal, 230V, flush-mounted.

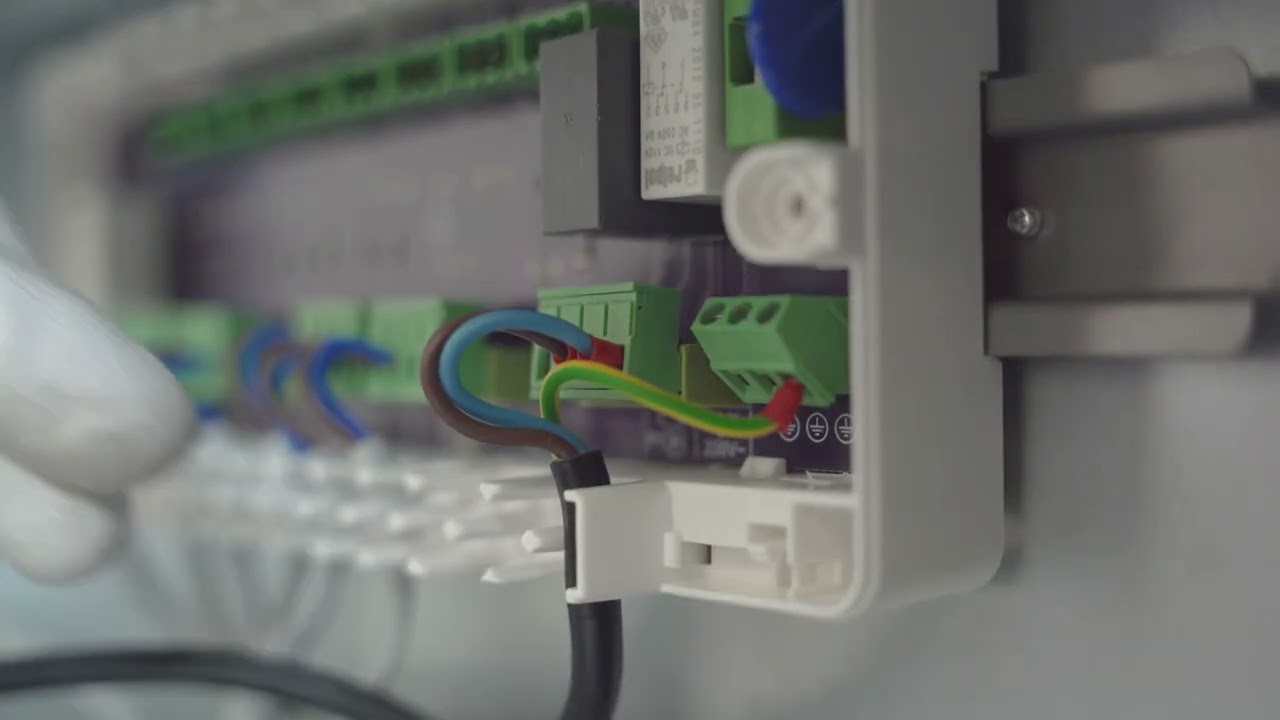

evoFLOOR X wiring instructions

This video is intended for installers, heating system designers, and anyone planning to build or upgrade a home heating system.

downloads

Please select the document that corresponds to the date on Delivery Note and the type of your device.
Each document is valid for devices purchased between its release date and the publication date of the subsequent version.
If you cannot find the appropriate document on this page, please search the .zip archive file or contact our Customer Service Department.

evoFLOOR X brief

evoFLOOR X datasheet

archival
documents

evoFLOOR X .zip
